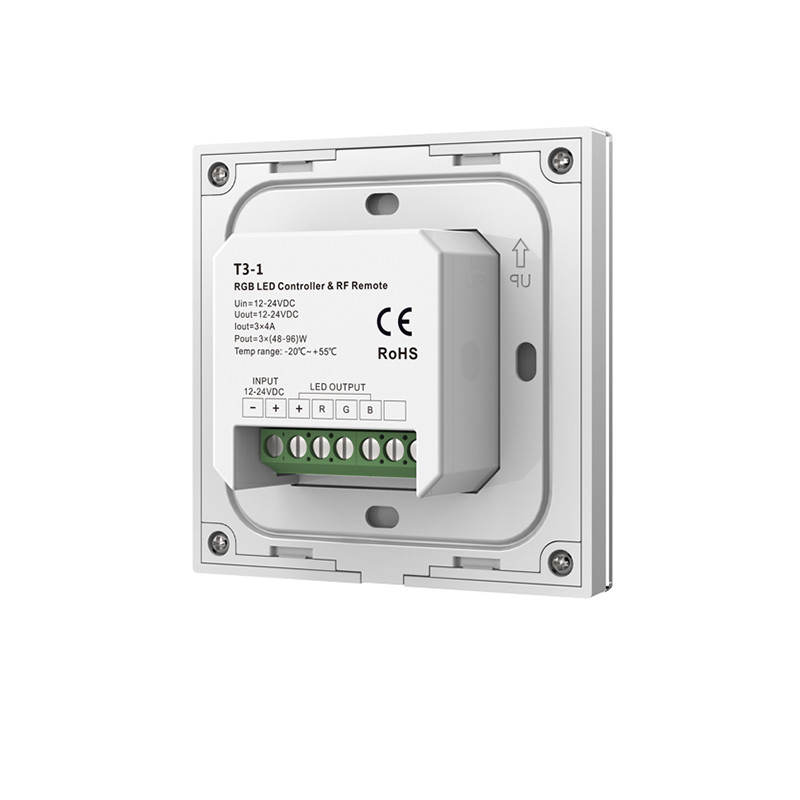

Led RGB Strip Controller DC12-24V 4A/3CH Output Wall Mount Touchable Panel​

Product parameter:

Wall mounted single color / dual color / RGB / RGBW LED controller T1-1/T2-1/T3-1/T4-1 is a full touch controller with 4 channel constant vpltage output, and offers fast and accurate color adjustment with unique design touch

color slide.

Feature

• Touch panel single color, dual color, RGB or RGBW PWM constant voltage controller.

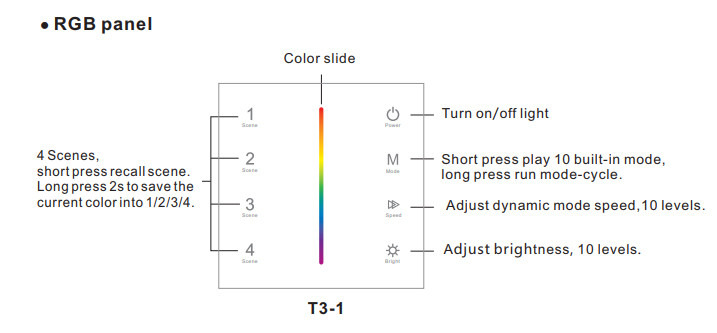

• Ultra sensitive high strength glass touch panel with touch color slide in the middle and backlighting.
• Smooth and accurate color adjustment by touching the color slide.
• Adopt 2.4GHz wireless technology, remote distance up to 30m.
• Touch keys with chord tones and LED indicator.

<

Match guide

Panel controller can match with RF remote by using power - up optionally.

1. Match: Switch off the power, then switch on power again,

short press on/off key or zone key 3 times on the RF remote quickly within 5s after power on,

the link is done once the light blinks 3 times.

2. Delete: Switch off the power, then switch on power again,

short press on/off key or zone key 5 times on the RF remote quickly within 5s after power on,

the unlink is done once the light blinks 5 times.

3. Multiple zone remote only use zone key to match each zone receiver.
