LED SPI Controller Dream Magic Pixel RF ws2812/2811/2801,TLS3001,LPD6803,9813 IC

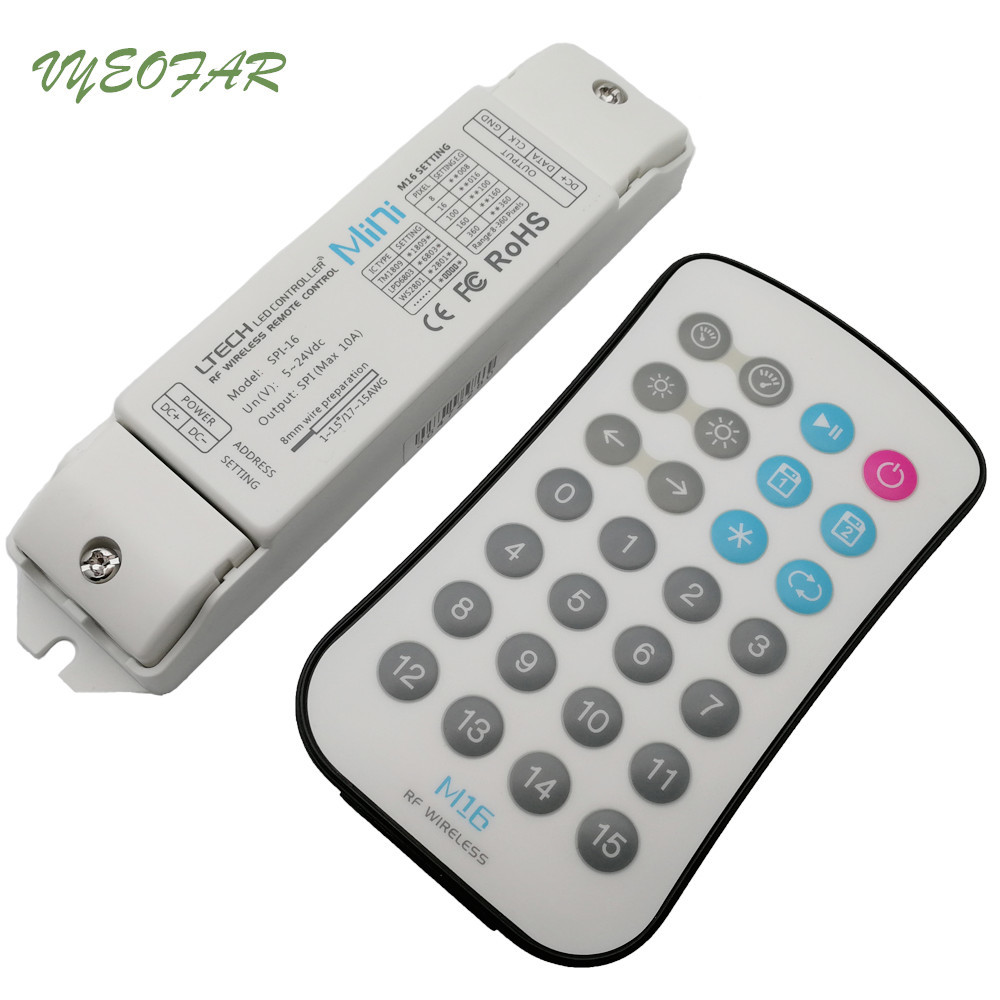

SPI-16 is a Mini LED pixel controller, equipped with RF remote M16, almost able to control all IC-driven LED

lights. Compact and powerful, various built - in changing effects and customized sceene modes can bring

you fantastic color!

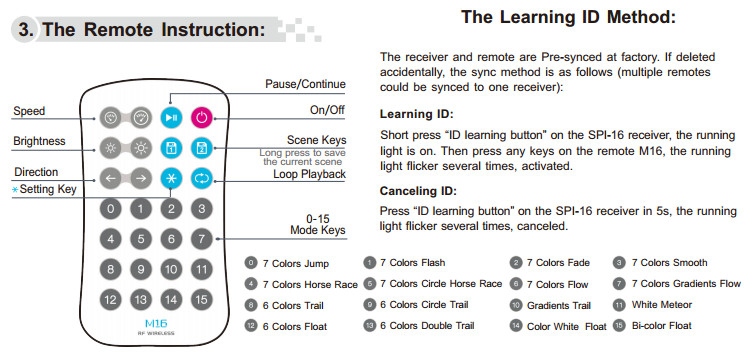

BY RF remote control M16, you can select from a variety of dynamic lighting effects, set controlled pixels

quantity, adjust the changing speed and brightness, change the lighting moving direction, adjust RGB

sequence, select the IC type, store and play customized scene etc.

Prouct Parameter:

SPI-16 Controller:

• Power Input:5-24Vdc
• Output:SPI
• Working Temperature:-30℃-55℃
• Dimensions:L135×W30×H20(mm)
• Weight(N.W.):47g
• Compatible driving IC: Many kinds, can be customized also

M16 Remote

• Working Voltage:3V (battery CR2032)
• Working Frequency: 433.92MHz
• Remote Distance:30m
• Working Temperature:-30℃-55℃
• Dimensions:L104×W58×H9(mm)
• Weight(N.W.):42g

Package Size: L132×W198×H22(mm)

Total Weight(N.W.):42g

Connect power supply to pixel LEDs separately, in case of overvoltage, overcurrent to the receiver.

Receiver only supply a signal to the LEDs.
