    RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

    Ask Lasest Price
    Brand Name : vyeofar
    Model Number : LT-903-DIP
    Certification : CE/Rohs
    Price : negotiable
    Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000/month
    • Product Details
    • Company Profile

    RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

    Led DMX Decoder Constant Voltage DC12V-24V 8A*3CH RJ45/XLR 3 channel output


    LT-903-DIP
    Input signalDMX512/RDM
    Input voltageDC12V~DC24V
    Max load current6A x 3CH Max. 24A
    Max output power(0~96W...192W) x3CH Max. 576W
    DMX512 socket3-pin XLR, RJ45
    Working temperature-30℃~65℃
    DimensionL122×W110×H37(mm)
    Package SizeL127×W123×H41mm
    Weight (G.W)550g

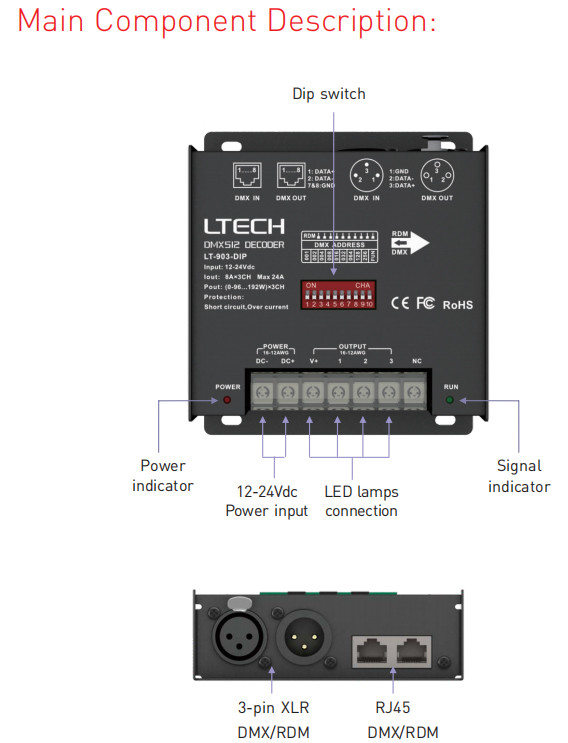

    Pruduct Introduction:

    1. Designed with 3 channels output, and Max. 8A current per channel, up to 576W output power

    2. Easy operation with digital display and the touch buttons

    3. Support 2 kinds of DMX ports:3-pin XLR, RJ45

    4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

    5. With shortcut protection and over load protection, as well as warniing function when fault.

    6. With fast self - testing function.

    7. High / Low PWM frequency for optional

    8. 16bit(65536 levels)/8bit(256 levels) grey level optional


    RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

    RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g

    RJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550gRJ45 / XLR 3 Channel Dmx Decoder DC12V-24V Overload Protection 550g
