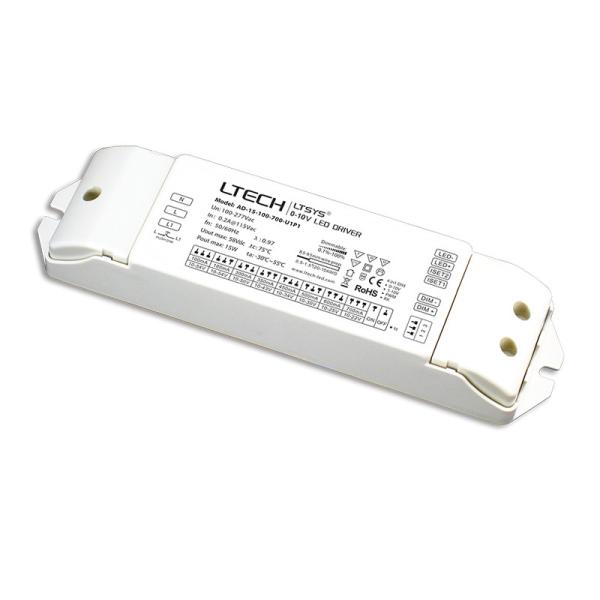

    0-10V Dimmable Driver AC100-240V,100-700mA 15W Constant Current Power Driver

    Ask Lasest Price
    Brand Name : LTECH
    Model Number : AD-15-100-700-U1P1
    Certification : CE/Rohs
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 1000
    • Product Details
    • Company Profile

    0-10V Dimmable Driver AC100-240V,100-700mA 15W Constant Current Power Driver

    0-10V Dimmable Driver AC100-240V,100-700mA 15W Constant Current 1-10V Power Driver​


    Model:AD-15-100-700-U1P1
    Dimming interface:0-10V(compatible with 1-10V/PWM/RX), Push DIM
    Dimming range:0-100%, LED Startup Current<0.1%
    Input voltage:100-277Vac ±10% (Max. 90-305Vac)
    Sec. output:
    Pout(Max.)Vout(DC)Constant(DC)
    1W-5.4W10-54V100mA
    1.8W-9.72W10-54V180mA
    3W-15W10-50V300mA
    3.5W-15.05W10-43V350mA
    4.5W-15.3W10-34V450mA
    5W-15W10-30V500mA
    6W-15W10-25V600mA
    7W-15.4W10-22V700mA

    0-10V Dimmable Driver AC100-240V,100-700mA 15W Constant Current Power Driver

    AD-25-150-900-U1P1.pdf
